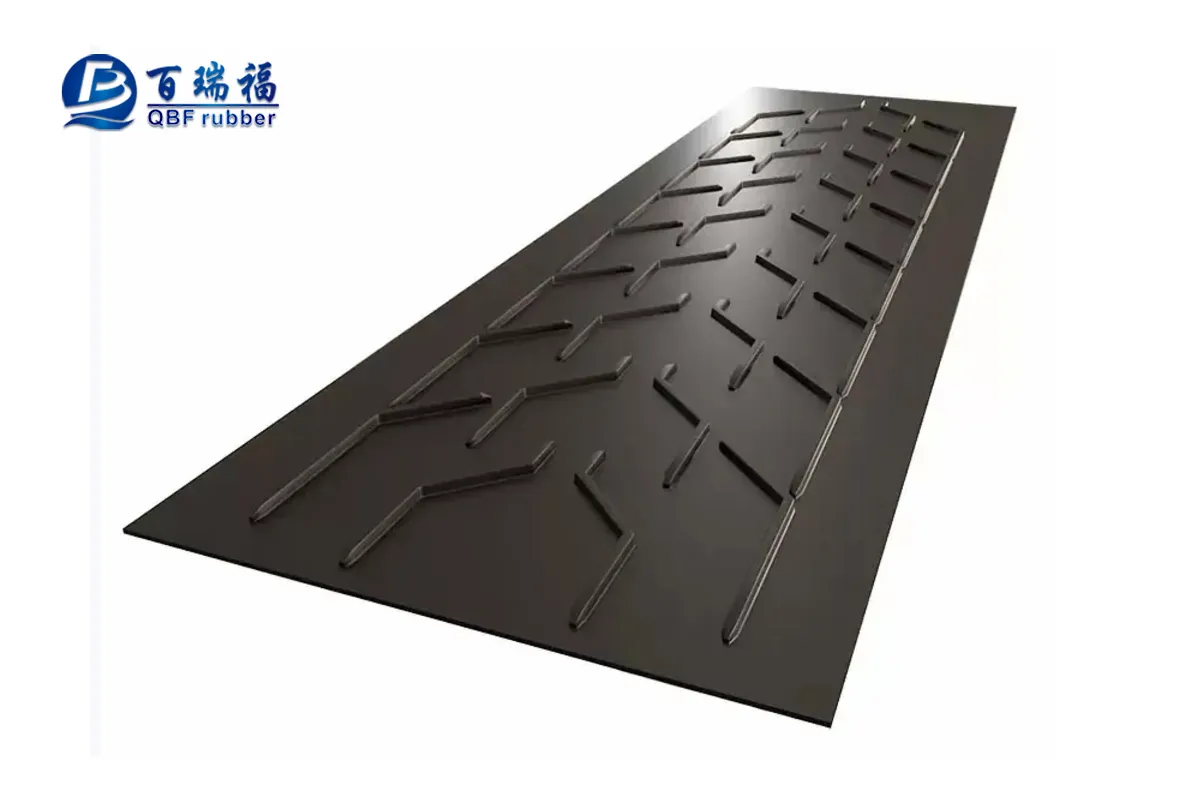

Chevron Belt
QBF profiles yog molded thiab vulcanised nyob rau hauv ib tug tas mus li txheej txheem ntau lawm ua ke nrog lub hauv paus siv, uas ua kom ib tug tib, homogeneous txoj siv txoj siv uas yog deb npaum li cas muaj zog dua siv uas muaj cov chevrons txuas nrog nyias. Lwm qhov txiaj ntsig tseem ceeb yog tias qhov kev sib koom ua ke no tso cai rau kev siv cov kab me me rubey.
Chevron txoj siv sia yog txoj siv sia kom ua tau raws li koj qhov yuav tsum tau ua thaum lub kaum sab xis siab dua ntawm kev xav tau thaum siv txoj siv conveyor nrog tus nqa nqa nto thaum lub kaum sab xis mus rau sab saud.
QBF profiles yog molded thiab vulcanised nyob rau hauv ib tug tas mus li txheej txheem ntau lawm ua ke nrog lub hauv paus siv, uas ua kom ib tug tib, homogeneous txoj siv txoj siv uas yog deb npaum li cas muaj zog dua siv uas muaj cov chevrons txuas nrog nyias. Lwm qhov txiaj ntsig tseem ceeb yog qhov tseem ceeb ntawm lub zog no tso cai rau kev siv cov kab me me me me.Integral vulcanization yog ib txoj hauv kev txhim khu kev qha thiab siv tau zoo ntawm kev koom nrog cov siv conveyor, tshwj xeeb tshaj yog rau cov ntawv siv hnyav. Nws muaj lub zog zoo dua, ua haujlwm ntev, thiab tsis kam hnav thiab tsim kua muag, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam uas xav tau kev ua haujlwm tas mus li thiab xav tau.
Tsis tas li ntawd, txoj kev no tso cai rau kev sib koom ua ke tsis sib haum xeeb thiab du uas txo qis kev pheej hmoo ntawm txoj siv sia, ua rau txoj siv sia ntev dua thiab txo cov nqi kho. Nws kuj ua kom muaj kev ua tau zoo thiab siv tau zoo, uas yog qhov tsim nyog rau cov txheej txheem kev lag luam uas xav tau qhov tseeb thiab qhov tseeb.Lub chevron siv tau zoo heev traction thiab tiv thaiv slippage, yog li txhim kho kev nyab xeeb thiab kev tsim khoom hauv chaw ua haujlwm. Nrog nws lub peev xwm los lis ntau cov ntaub ntawv thiab kev siv, nws yog ib qho kev daws teeb meem ntau yam thiab muaj txiaj ntsig zoo rau ntau yam kev lag luam, xws li mining, kev ua liaj ua teb, thiab kev tsim kho.
Qhov profile qhov siab qis dua 16 hli feem ntau haum rau cov pob me me thiab cov kaum sab xis ntawm 20 txog 25 degrees. Rau qhov loj me me thiab qhov siab ntawm qhov siab, 32 hli siab chevron profile yuav muab cov txiaj ntsig zoo tshaj plaws.
Nta
● Tsim nyog rau cov khoom sib txawv, chevron siv tuaj yeem xaiv raws li qhov xav tau tiag tiag.
● Tshiab chevron profile tuaj yeem tsim los ua kom tau raws li koj xav tau.
● Siv dav ntawm 400mm-1400mm nrog cov qauv sib txawv.
Hom: C17P440 / C17P630 / C17P750
|
Profile qhov siab (mm) |
Profile dav (mm) |
Profile duab (mm) |
Siv dav (mm) |
|
17 |
440 |
330 |
1200 |
|
17 |
630 |
330 |
1200 |
|
17 |
750 |
330 |
1200 |
Hom: C25P330 / C25P330 / C25P440
|
Profile qhov siab (mm) |
Profile dav (mm) |
Profile duab (mm) |
Siv dav (mm) |
|
25 |
260 |
245 |
1200 |
|
25 |
330 |
245 |
1200 |
|
25 |
440 |
245 |
1200 |
Qauv: C32P1000
|
Profile qhov siab (mm) |
Profile dav (mm) |
Profile duab (mm) |
Siv dav (mm) |
|
32 |
1000 |
330 |
1300 |
Hom: C10P700 Kaw V / C15P400 Kaw V / C15P550 Kaw V
|
Profile qhov siab (mm) |
Profile dav (mm) |
Profile duab (mm) |
Siv dav (mm) |
|
10 |
700 |
220 |
1200 |
|
15 |
400 |
200 |
1200 |
|
15 |
550 |
200 |
1200 |
Hom: C25P500 / C25P800
|
Profile qhov siab (mm) |
Profile dav (mm) |
Profile duab (mm) |
Siv dav (mm) |
|
25 |
500 |
250 |
1200 |
|
25 |
800 |
250 |
1200 |
Hom: Y32P600 / Y32P600c
|
Profile qhov siab (mm) |
Profile dav (mm) |
Profile duab (mm) |
Siv dav (mm) |
|
32 |
600 |
330 |
1200 |
|
32 |
800 |
330 |
1200 |
Cim npe nrov: chevron siv, Tuam Tshoj chevron siv, lwm tus neeg, Hoobkas
